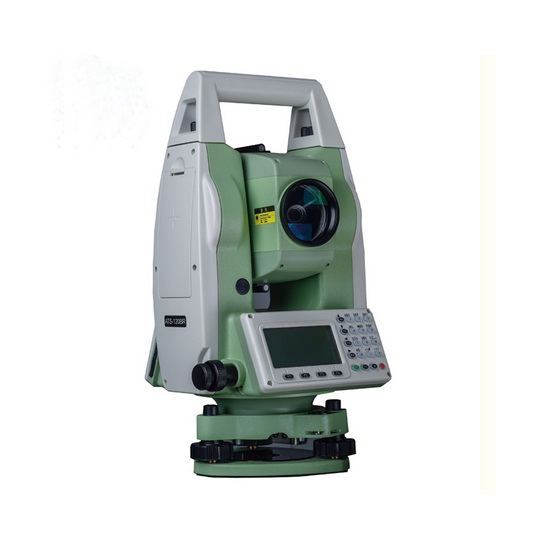

Product name : Hot sell total station surveying instrument
Item : ZL-120R
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

MODEL
ZL-120R
ZL-120L6


Angel Measurement


Measurement Method
Absolute Encoding


Minimum Readout
Wedge


Objective Aperture
1''


Accuracy
2''


Telescope


Magnification
30X


Field of view
1°30'


Minimum Focusing Distance
1.3m


Reticle
Illuminated


compensator


System
Liquid tile sensor/Dual-axis


Working range
±3'


Accuracy
1"


Measuring Time(Fine/Tracking)
1s/0.5s
0.8s/0.4s


Distance Measurement ( with Reflector)


Reflectorless Range(Calculated by Kodak Gray card white side with 90% reflective)
400m
600m


Accuracy
3mm+2ppm


Measuring Time
1.5s


Communication


Internal data Memory
Approx…20000 points/SD Card


Interface
Standard RS232.Mini-B , USB pen drive


Wireless Communication
Bluethooth


Data format
ASCII


Operation




System
Real-time operating system


Display
High resolution backlight black and white display with contrast adjustment/Graphics 192X96 pixels


Keyboard
2sides alphanumeric backlit crystal keyboard


Laser Plummet


Type
Laser point, 4brightness levels adjustment/optical plummet(optional)


Centering Accuracy
1mm at 1.5m instrument height


Environmental


Operating Temperature
zero below 20 degree to +50 degree(-4F to +122F)


Storage Temperature
zero below 40 degree to +70 degree(-40F to +158F)


Temperature& Pressure
Auto Sense


Dust&Water proof(IEC60529 Standard)
IP55


Power Supply




Battery Type
Li-ion battery


Voltage/Capacity
ZBA-400:7.4V(DC)/3000mAh


Operating Time with ZBA-400
Optimal 16hours(Continuous angle measurement every 30 seconds)/10hours (Typical)


Measuring Times
Approx.12000 times
