Products > Laser Level > > Rotary laser Level

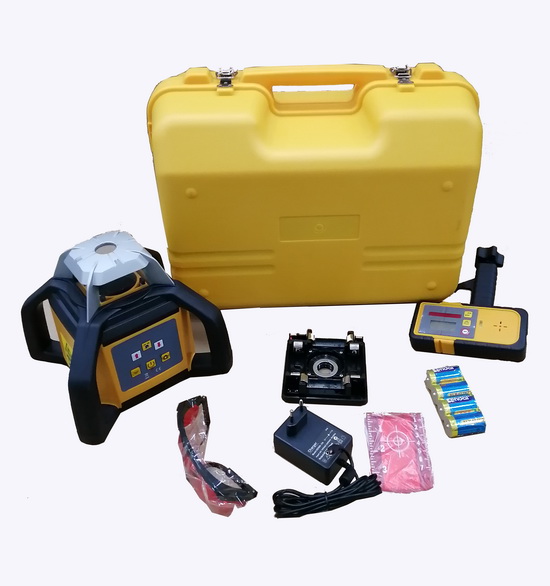

Product name : Rotary laser Level
Item : FRE203X-1-H
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Features:



* With 4 x handels for an easier grip & protection from dropping down

* Fast Electronic self-leveling, wide leveling range, high precision and stability

* Both H & V electronic self-leveling. Plumb up beam can be "shut off" through lighthouse

* Can be mounted onto the tripod with 5/8" head directly.

* Plumb beam for 90° layout work,Plumb- down feature for setup over a point

* With scanning function.



* With clockwise and counterclockwise spining function

* Manual with dual slopes adjustment



* Housing made with rubber and high-impact plastic

* Full function IR remote control

* H.I. (elevation) alert with separate switch.

* Superior dust-and water-resistance to withstand demanding construction environments.

Model

FRE203X-1-H

Accuracy

20 arc seconds(+/-1mm/10m)

Compensation Self-leveling Range



Level system

Electronic sensor fast leveling

 Measuring Range Diameter

600m(with laser detector)

 Laser type

Red Beam (635nmClass II ); Green Beam(515nm Class 3R )

Remote Control

Available working distance:20 m

  Operating temperature

 -20°C to +50°C(-4°F-+122°F)

Power supply

DC 4. 8-6V (4*sub-C NI-MH battery & an extra alkaline battery pack)

 Continuous working Hrs

Approx. 20hr by NiMh battery, 15hr by C size alkaline battery

 Five head speeds

0, 60, 120,300,600r.p.m.

Four scan widths

10°; 45°; 90°; 180°.

Waterproof and dustproof

IP65

Dimension

206(L) X 206(W)X 211(H)mm

 Weight

2.5KG
