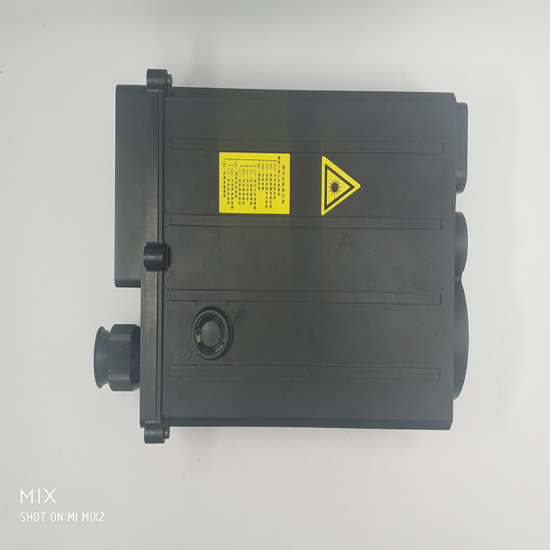

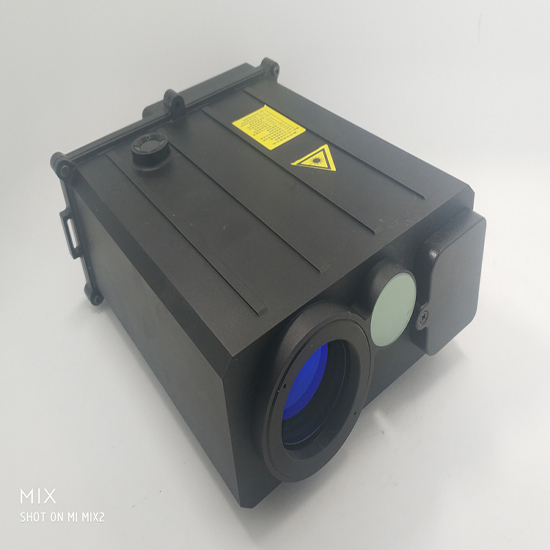

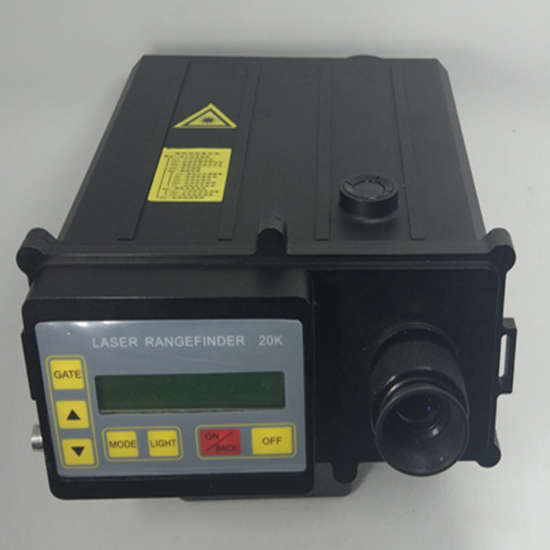

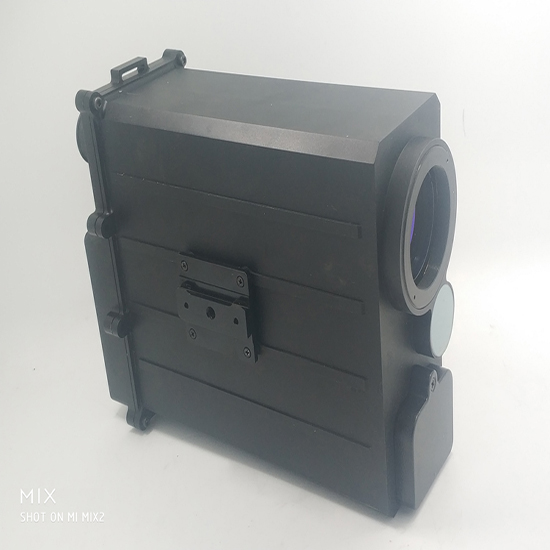

Product name : Remote Laser Range Finder
Item : LR206L
|
| Details: |
|
Model
|
LR206-15Km
|
LR206-20Km
|
|
Measuring Range
|
100-16000m
|
100-21000m
|
|
Range Error
|
±0.5m
|
|
Working frequency
|
1/6 ~ 1/3 Hz
|
|
laser beam divergence
|
±1mrad
|
|
Distance Function
|
Calculation of measurement data of average value
|
|
The measurement data is stored (1000 data)
|
|
Data transmission: RS232, 2400, 8, N, 2
|
|
Instrument working lifetime statistics
|
|
Ten recent distance values query
|
|
Battery life view
|
|
Sequence number
|
|
Store data query
|
|
Receiving Aperture
|
Φ50mm
|
|
Field of view
|
3.5°
|
|
Magnification
|
12X
|
|
Laser type
|
YAG laser
|
|
wavelength
|
1.064μm
|
|
Working temperature
|
"-10℃--+50℃"
|
|
Environmental adaptation
|
Dustproof, waterproof, and shockproof
|
|
Size
|
177mm×240mm×96mm
|
|
Weight
|
1.7KG
|
|
Battery
|
Li Batteries(11.1V,1200mAh), At normal temperature working life over 3000 times
|
|
|
